Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Nuts and bolts must be tightened with the weight of the vehicle on the suspension.
NOTE: Removal steps in this procedure may contain installation details.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Raise and support the vehicle.

  2. Refer to: Wheel and Tire
  3. G11283907

    Torque Specification: 103 Nm

  4. G11283620
    5. WARNING: Make sure that a new nut is installed.
    NOTE: Use an additional wrench to prevent the component from rotating.

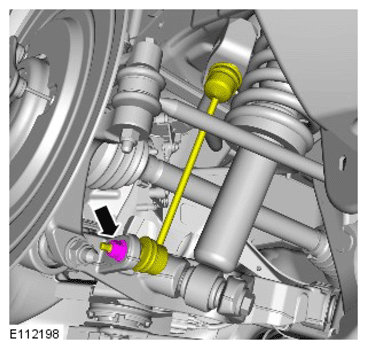

  5. G11296643

    Torque Specification: 48 Nm

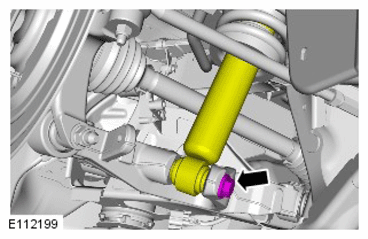

  6. G11296644

    Torque Specification: 133 Nm

    7. CAUTION: Make sure the wheel knuckle is supported. Failure to follow these instructions may result in damage to the vehicle.

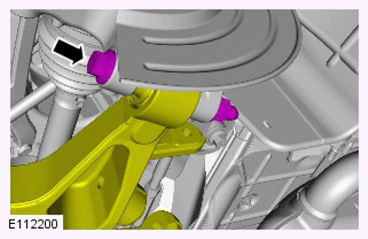

  7. G11296645

    Torque Specification: 150 Nm

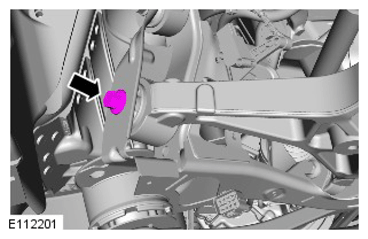

  8. G11296646

    Torque Specification: 192 Nm

    9. CAUTION: Make sure that a new bolt is installed.

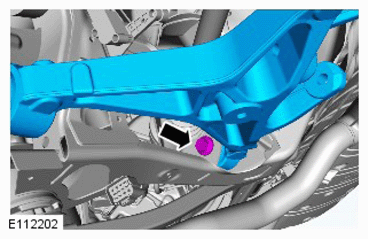

  9. G11296647

    Torque Specification: 192 Nm
