Wheel Knuckle
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

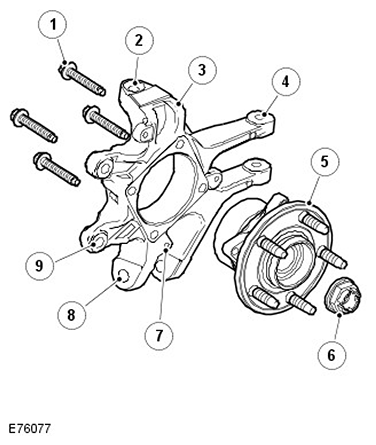

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hub attachment bolt (4 off) |
| 2 | Upper control arm attachment |
| 3 | Wheel knuckle |
| 4 | Toe-link attachment |
| 5 | Wheel hub and bearing assembly |
| 6 | Half shaft nut |
| 7 | Brake dust shield attachment |
| 8 | Lower control arm attachment |
| 9 | Brake caliper attachment |
The wheel knuckle is an aluminum casting which provides for the attachment of the upper and lower control arms and the toe-link. The wheel knuckle also provides the mounting locations for the wheel hub and bearing assembly, the wheel speed sensor, the brake caliper and the brake dust shield, which is secured with 3 rivets.
The wheel hub and bearing assembly is a non-serviceable component that requires replacement as a complete assembly. It is secured to the wheel knuckle with 4 bolts. A magnetic encoder ring for the wheel speed sensor is incorporated into the wheel bearing.
