Upper Control Arm
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

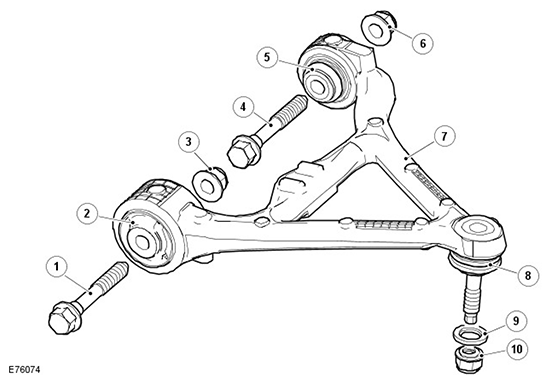

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bolt |
| 2 | Bush |
| 3 | Locknut |
| 4 | Bolt |
| 5 | Bush |
| 6 | Locknut |
| 7 | Upper control arm |
| 8 | Ball joint |
| 9 | Washer |
| 10 | Locknut |
The cast aluminum upper control arm is a wishbone design with 3 mounting points. Two bushed mountings locate in brackets on the crossbeam. The outer end has a ball joint which mates with the wheel knuckle.
