Description And Operation: Toe-Link
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

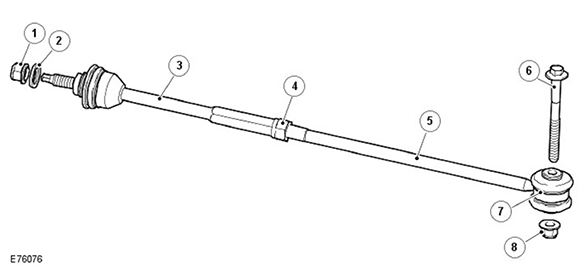

| ITEM | DESCRIPTION |
|---|---|
| 1 | Locknut |
| 2 | Washer |
| 3 | Inner rod and ball joint |
| 4 | Locknut |
| 5 | Outer rod |
| 6 | Bolt |
| 7 | Outer ball joint |
| 8 | Locknut |
The toe-link is located between the wheel knuckle and brackets on the rear crossbeam.
The toe-link comprises an inner rod with integral ball joint. The inner ball joint has a threaded spigot which locates in a bracket on the crossbeam and is secured with a washer and locknut. The rod has an internal thread which accepts the outer rod.
The outer rod has a ball joint at its outer end which is located between 2 brackets on the wheel knuckle, and is secured with a bolt and locknut.
The length of the toe-link can be adjusted by rotating the inner and outer rods. This allows for adjustment of the toe angle for the rear wheel. Once set the inner and outer rods can be locked in position by tightening a locknut against the inner rod.
