Lower Control Arm
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

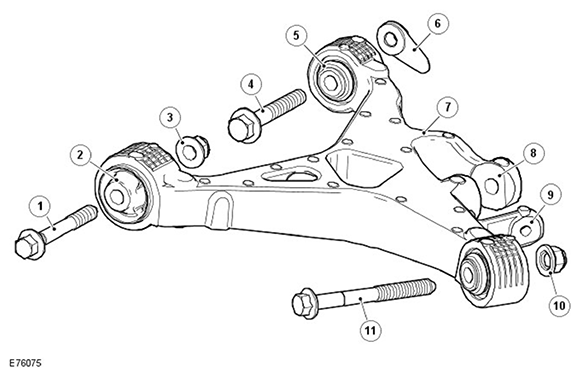

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bolt |
| 2 | Bush |
| 3 | Locknut |
| 4 | Bolt |
| 5 | Bush |
| 6 | Caged nut |
| 7 | Lower control arm |
| 8 | Spring and damper assembly attachment |
| 9 | Stabilizer link attachment |
| 10 | Locknut |
| 11 | Bolt |
The cast aluminum lower control arm is a wishbone design with 3 bushed mounting points. Two bushes locate between brackets on the crossbeam and the outer bush locates in the wheel knuckle.
The rear of the control arm has mounting points for the spring and damper assembly and the stabilizer link.
