Component Location: Notes
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

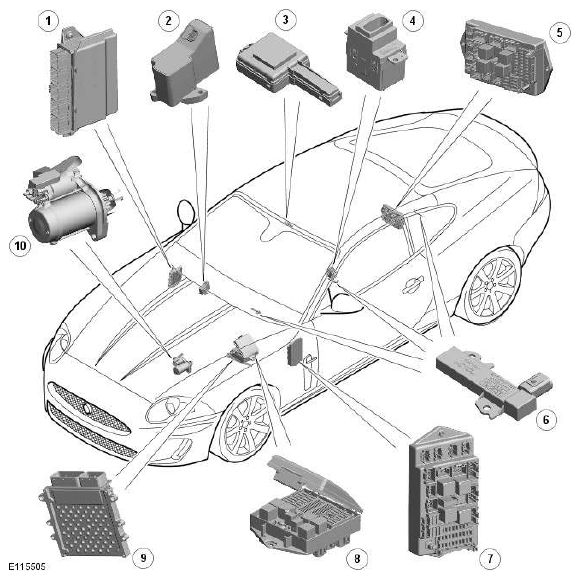

| ITEM | DESCRIPTION |
|---|---|
| 1 | Keyless vehicle module |
| 2 | Electric steering column lock (all except NAS (north American specification)) |
| 3 | RF (radio frequency) receiver |
| 4 | Start control module |
| 5 | AJB (auxiliary junction box) |
| 6 | LF (low frequency) antennae - passive start system (3 off) |
| 7 | CJB (central junction box) |
| 8 | Power distribution box |
| 9 | ECM (engine control module) |
| 10 | Starter motor and solenoid |
