Keyless Vehicle Module

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

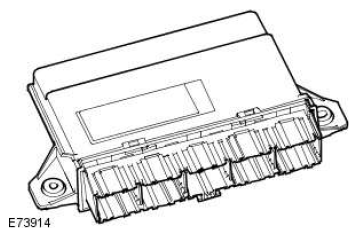

G11523942

The keyless vehicle module is located on the RH (right - hand) A pillar. The module controls signal transmissions to and from the smart key and provides authorization to allow the vehicle to be entered and started. The module has a medium speed CAN (controller area network) connection to the CJB for authorizing vehicle unlocking and starting.
