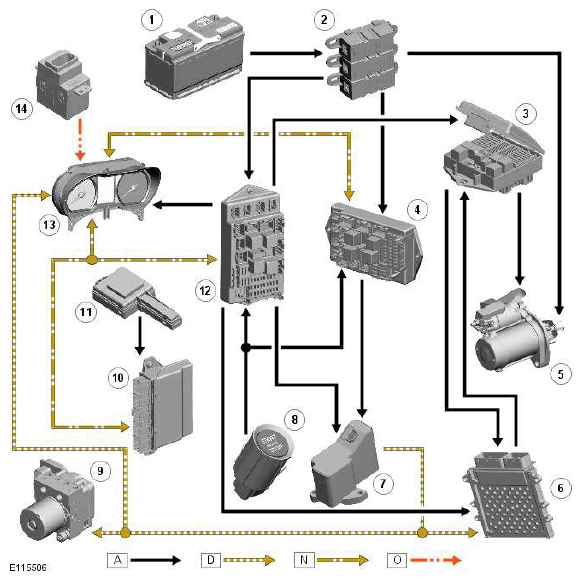

Control Diagram
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; D = High speed CAN bus; N = Medium speed CAN bus; N = LIN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) (400 A megafuse, 2X175 A megafuses) |
| 3 | Power distribution box |
| 4 | AJB (auxiliary junction box) |
| 5 | Starter motor and solenoid |
| 6 | ECM |
| 7 | Electric steering column lock (all except NAS) |
| 8 | Start/Stop switch |
| 9 | ABS module |
| 10 | Keyless vehicle module |
| 11 | RF receiver |
| 12 | CJB (central junction box) |
| 13 | Instrument cluster |
| 14 | Start control module |
