Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

Make the pedestrian protection system safe

  1. See Figure
    G11523934

    Remove the air intake cover.

    • Remove the 3 clips.
  2. Release the pedestrian protection actuator bracket.
    • Release the 3 wiring harness clips.
    • Remove the 4 bolts.
  3. See Figure
    G11523935

    Remove the pedestrian protection actuator and bracket.

    • Disconnect the electrical connector.

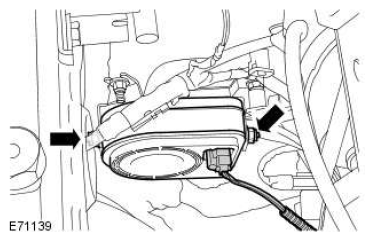

  4. See Figure
    G11523936

    Remove the anti - theft alarm horn.

    • Loosen but do not remove the 2 nuts.
    • Disconnect the electrical connector.
