Passive Anti - Theft Horn [If Fitted]

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
G11523928

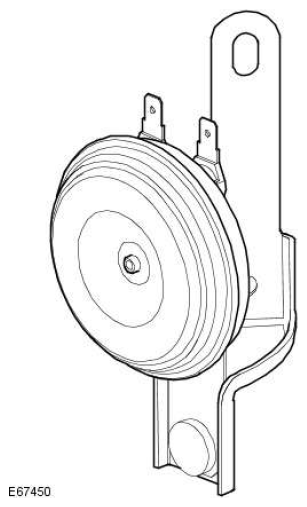

The passive anti - theft horn is located in the RH rear corner of the engine compartment and attached to the bulkhead. The passive anti - theft horn is connected directly to the CJB which activates the passive anti - theft horn when the alarm is triggered.
