Intrusion Detection Modules

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

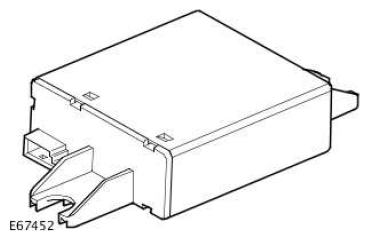

The intrusion detection modules are an optional fitment in some markets and are not available in other markets. Two intrusion detection modules are fitted. One module is located on the front of the floor console and monitors the front seat area, the second module is fitted at the rear of the floor console and monitors the rear seat area. The modules are connected in parallel, with the forward module being the master module and the rearward module being the slave module.

Each intrusion detection module comprises two microwave sensors which allow the interior of the vehicle to be monitored. The intrusion detection modules also monitor the vehicle interior on soft top models when the soft top is down.

The intrusion detection modules are activated by the volumetric mode of vehicle locking, which is selected when the vehicle is double locked. The vehicle can be locked and alarmed without activating the intrusion detection modules, if a pet is to be left in the vehicle for example, by single locking the active anti - theft system. The intrusion detection modules can also be de - activated by deselecting the Intrusion/Tilt option in the Vehicle Settings screen on the TSD.

NOTE: The TSD method of de - activation of the intrusion detection modules is only for one arming cycle. They will revert to active once the vehicle is subsequently unlocked and then locked.

When the volumetric mode is active, if the vehicle battery voltage falls to less than 9 volts, the CJB will ignore any inputs from the intrusion detection modules to prevent false alarm activation.
