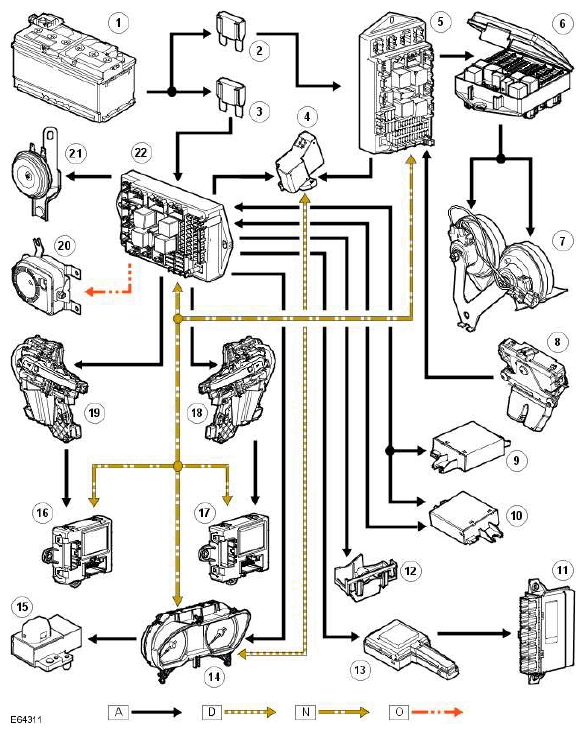

Control Diagram: Notes
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; D = High speed CAN bus; N = Medium speed CAN bus; O = LIN Bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Megafuse (175A) |
| 3 | Megafuse (175A) |
| 4 | Electric steering column lock (all except NAS (north American specification)) |
| 5 | CJB |
| 6 | Power distribution box |
| 7 | Vehicle horns |
| 8 | Liftgate latch ajar switch |
| 9 | Intrusion detection module |
| 10 | Slave intrusion detection module |
| 11 | Keyless vehicle module |
| 12 | Hood ajar switch |
| 13 | CLS RF receiver |
| 14 | Instrument cluster |
| 15 | Light sensor (security LED) |
| 16 | RH door module |
| 17 | LH door module |
| 18 | LH door latch ajar switch |
| 19 | RH door latch ajar switch |
| 20 | Battery backed sounder (if fitted) or battery backed sounder with tilt sensor (if fitted) |
| 21 | Passive anti - theft alarm horn (if fitted) |
| 22 | AJB |
