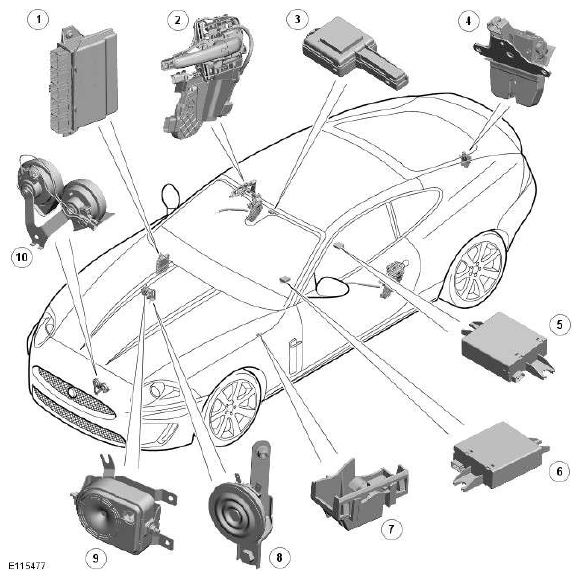

Component Location
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Keyless vehicle module |
| 2 | Left hand and right hand door latch microswitches |
| 3 | Central door locking RF (radio frequency) receiver |
| 4 | Liftgate latch microswitch |
| 5 | Slave intrusion detection module |
| 6 | Intrusion detection module |
| 7 | Hood ajar switch |
| 8 | Passive anti - theft horn (if fitted) |
| 9 | Battery backed sounder (if fitted) or battery backed sounder with tilt sensor (if fitted) |
| 10 | Vehicle horns |
