Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Always protect paintwork and glass when removing exterior components.
Always protect the interior components when removing body glass.
Lay the glass on felt covered supports. Do not stand on edge as this can cause chips which subsequently develop into cracks.

NOTE: The following equipment is required: l Cutting wire and handles l Kent knife l Glazing knife l Windshield replacement kit l Sealant applicator gun l Suction cups l A felt covered table or stand to support glass

Remove the plenum chamber panel.
For additional information, refer to: Cowl Vent Screen .
Remove both A-pillar trim panels.
For additional information, refer to: A-Pillar Trim Panel .

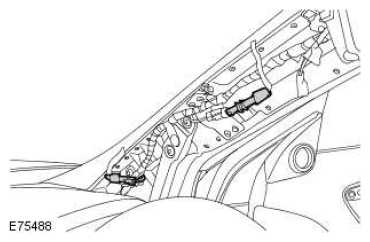

NOTE: LH illustration shown, RH is similar.

Disconnect the heated windshield electrical connectors.
Remove the rain sensor.
For additional information, refer to: Rain Sensor .
WARNING: Eye protection must be worn.

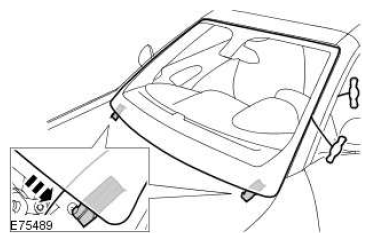

CAUTION: The two shaded areas in the graphic indicate the position of a body patch, that covers a body joint. Take care not to trap the cutting tool in the body joint.

With assistance, remove the windshield glass.
- Carefully cut through the sealant using a glazing knife or cutting wire.
- Attach the suction cups.
