Removal And Installation: Installation
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Correct preparation of body apertures "post painting" to ensure satisfactory glass adhesion, must be carried out in line with industry practise.
-
Carefully remove the sealant from the body to leave a smooth surface.
Install the windshield glass.

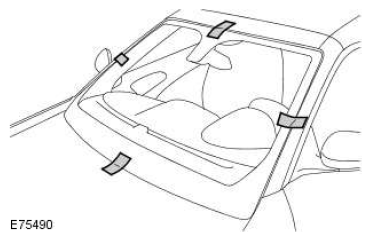

- Use masking tape to establish reference marks as an alignment aid.
- Remove the windshield glass.
- Clean the component mating faces.
- Apply etch primer to any bare metal.
- Apply primer over the etch primer.
- Apply glass primer to the sealant face on the windshield glass and allow to cure.
- Apply activator over the old sealant on the windshield glass and allow to cure.
- Fit a pre-cut nozzle to the sealer cartridge, remove the lid, shake out the crystals and fit the cartridge to the applicator gun.
- Modify the nozzle to achieve a bead section in the shape of a right angle triangle with a base of 8 mm and a vertical height of 12 mm.

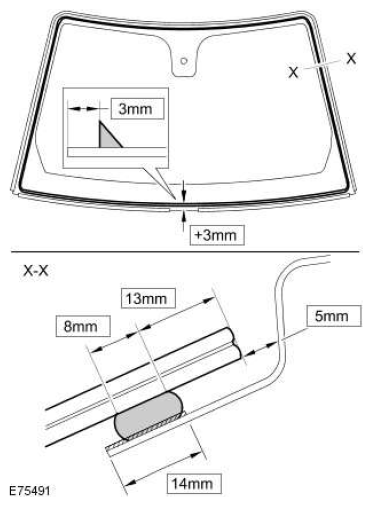

Apply a continuous bead of sealant to the windshield glass as shown.
- With assistance, install the window glass.
- Lightly press the window glass to seat the sealer.
- Connect the electrical connectors.
- Test the sealer for leaks, apply additional sealer if necessary. If water is used, allow sealer to dry before testing. Spray water around the glass and check for leaks. Mark any area that leaks. Dry the glass and sealer then apply additional sealer.
- Install the rain sensor.
For additional information, refer to: Rain Sensor .
- Connect the heated windshield electrical connectors.
- Install the A-pillar trim panels.
For additional information, refer to: A-Pillar Trim Panel .
- Install the plenum chamber panel.
For additional information, refer to: Cowl Vent Screen .
