Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Cowl Vent Screen (Front End Body Panels, Removal and Installation).
  2. Refer to: A-Pillar Trim Panel (Interior Trim and Ornamentation, Removal and Installation).
  3. Refer to: Rain Sensor (Wipers and Washers, Removal and Installation).

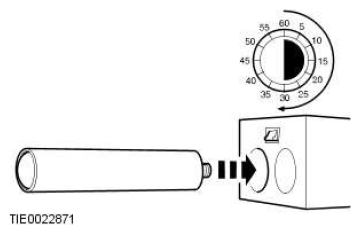

  4. G11524377
    • Remove the polyurethane (PU) adhesive cap and heat the PU adhesive for a minimum of 30 minutes.
  5. G11524378
  6. CAUTION:
    • Protect the surrounding components.
    • Protect the surrounding paintwork to avoid damage.
    G11524379

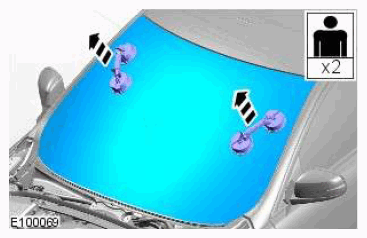

  7. WARNING: This step requires the aid of another technician.
G11524380
