Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

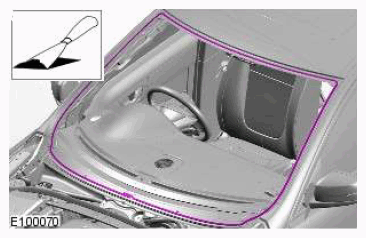

  1. CAUTION:
    • Make sure that the mating faces are clean and free of foreign material.
    • Correct preparation of body apertures "post painting" to ensure satisfactory glass adhesion, must be carried out in line with industry practise.
    G11524381
    • Prepare the window glass, window glass flange and trimmed PU adhesive in accordance with the instructions included with the PU adhesive kit.

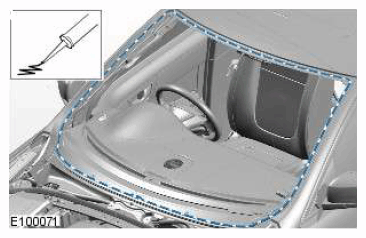

  2. CAUTION: Touching the adhesive surface will impair rebonding.
    G11524382

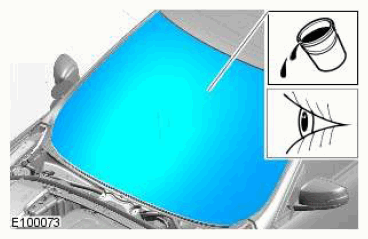

  3. CAUTION: Make sure that no excess sealant residue is evident.
    G11524383
    • If water is used as a means for the leak check, then allow sealant to dry before testing.
    • Spray water around the windshield glass, mark any area that leaks. Dry the windshield glass and sealant before applying additional sealant.

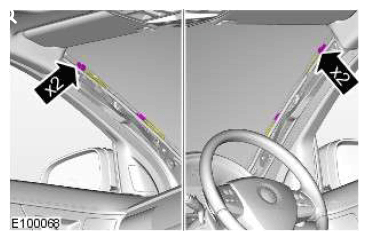

  4. G11524378
  5. Refer to: Rain Sensor (Wipers and Washers, Removal and Installation).
  6. Refer to: A-Pillar Trim Panel (Interior Trim and Ornamentation, Removal and Installation).
  7. Refer to: Cowl Vent Screen (Front End Body Panels, Removal and Installation).
