Front Door Glass Assembly

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

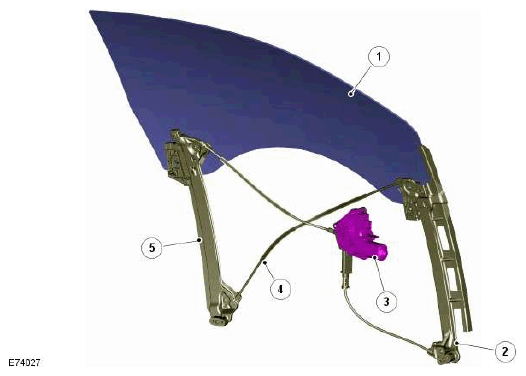

ITEM	DESCRIPTION
1	Front door glass
2	'A' pillar guide rail
3	Window motor
4	Bowden cables
5	'B' pillar guide rail

One-touch up operation causes the door glass to fully close unless an object is detected ('Anti-trap') or the glass is within 45 mm of top of travel when the door is opened. If the 'Anti-trap' regulator detects an object, the glass will drop fully open or to 200 mm below the obstruction. All door glass operates with the ignition in either 'Accessory' mode or 'On' mode and after the ignition enters 'Off' mode, until either door is opened.

The front windows must be programmed for one-touch operation in order for the convertible top to operate correctly. Failure to program the windows results in a 10 second opening delay once the top is unlatched.

The windows can be manually programmed for one-touch operation using the following procedure:

Engine running
Raise window up to the top seal and release switch
Raise again until window stops moving
Release switch
Raise again
Lower window fully
Release switch
Press lower for a further 0.5 seconds until a relay is heard to CLICK

NOTE: Before commencing work within a door interior, all Warnings and Notes within the appropriate Removal and Installation procedures must be read and fully understood.

To re-learn the glass operating characteristics, the associated door must be closed (door ajar switch inactive). The glass must then be driven fully down and held stalled at the bottom of its travel for a minimum of 1 second. The glass is finally driven to the fully up position and held stalled for a minimum of 1 second. The re-learning procedure must also be accomplished to regain the automatic glass closing sequence.
