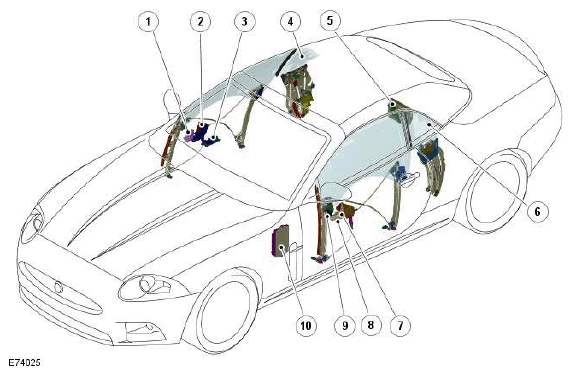

Component Location - Door Glass And Rear Quarter Glass Mechanisms
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Convertible shown, coupe similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Passenger door module |
| 2 | Passenger window motor |
| 3 | Passenger door switch pack |
| 4 | RH quarter glass assembly (convertible only) |
| 5 | Auxiliary junction box |
| 6 | LH quarter glass assembly (convertible only) |
| 7 | Driver window motor |
| 8 | Driver door switch pack |
| 9 | Driver door module |
| 10 | Central Junction Box (CJB) |
