Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

Install the front door window glass.
- Attach the clamp and rubber washer.
- Install the Torx bolts, but do not tighten fully at this stage.
NOTE: The window must be fully raised when carrying out measurements.

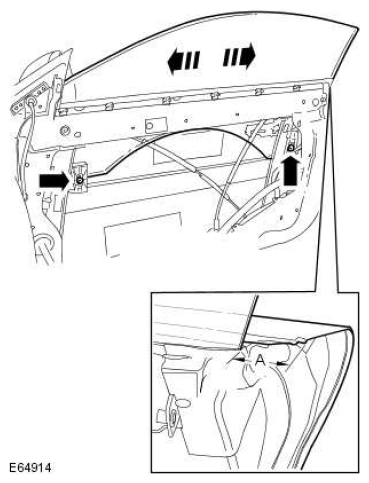

Align the front door window glass longitudinally.
- Position the window, forwards or rearwards, glass edge should be 44mm from edge of door as shown in dimension 'A'.
- Tighten the Torx bolts to 8 Nm (6 lb.ft).

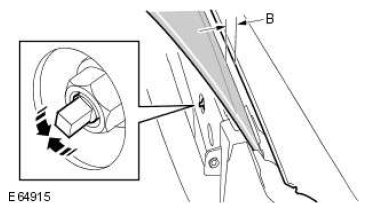

NOTE: To adjust the window hold the locknut and turn the center spindle.

Align the front door window glass horizontally.
- Release the retaining nut.
- Align the glass to door, glass should be 12mm from door as shown in dimension 'B'.
- Tighten the retaining nut to 10 Nm (7 lb.ft).
Install the front door inner weathershield.
- Attach the front door interior handle cable.
- Tighten the Torx bolt to 10 Nm (7 lb.ft).
Secure the front door inner weathershield.
- Secure the wiring harness clips.
- Connect the electrical connectors.
Install the window regulator motor.
- Install and tighten the Torx screws.
- Connect the electrical connector.
Install the front door trim panel.

For additional information, refer to: Front Door Trim Panel .
Connect the battery ground cable and install the cover.
For additional information, refer to: BATTERY DISCONNECT AND CONNECT .
