Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Always protect paintwork and glass when removing exterior components.
NOTE: Removal steps in this procedure may contain installation details.
    WARNING: Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.

    2. NOTE: The procedure must be carried out on both sides.

  2. Refer to: Wheel and Tire

    3. NOTE: The procedure must be carried out on both sides.

  3. Refer to: Loadspace Trim Panel - 2-Door

  4. NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

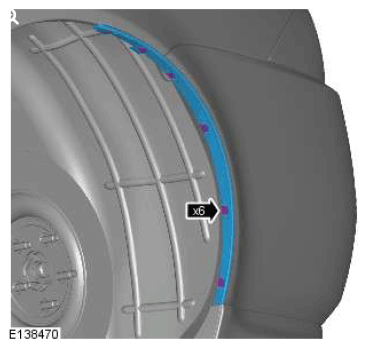

    G11524792
    5. NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

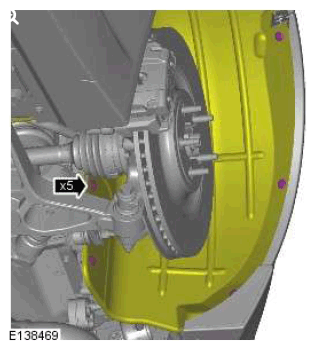

  5. G11524793
    6. NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

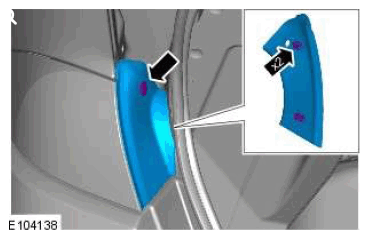

  6. G11524794
    7. NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

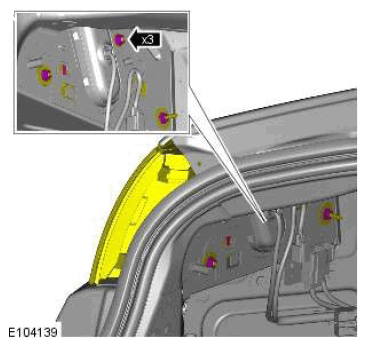

  7. G11524795

    Torque Specification: 2 Nm

    8. CAUTION: Take great care when removing the rear lamp assembly as the forward point of the lens can be easily damaged.
    NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

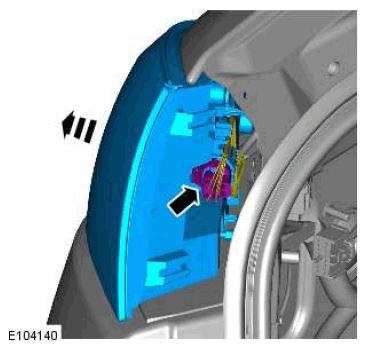

  8. G11524796

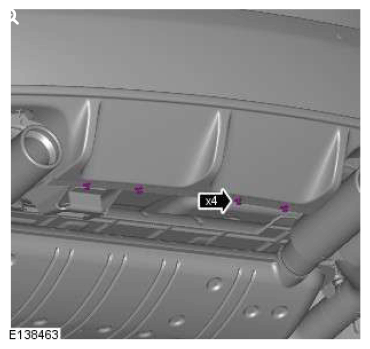

  9. G11524797

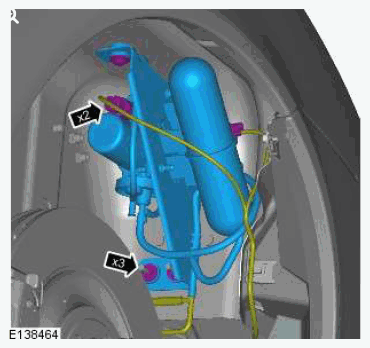

  10. G11524798

    Torque Specification: 7 Nm

    11. NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

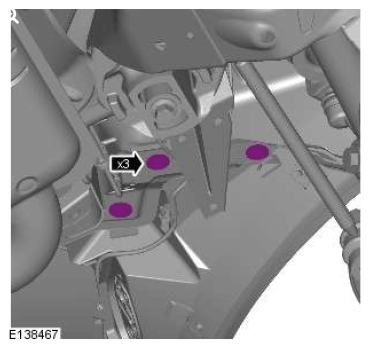

  11. G11524799

    Torque Specification: 6 Nm

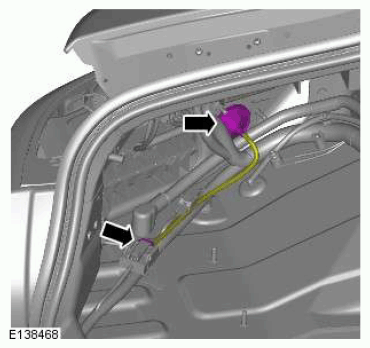

  12. G11524800
    13. NOTE:
    • LH illustration shown, RH is similar.
    • The step must be carried out on both sides.

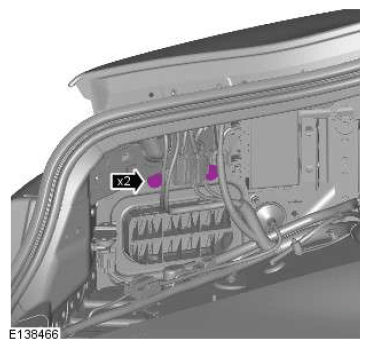

  13. G11524801

    Torque Specification: 6 Nm

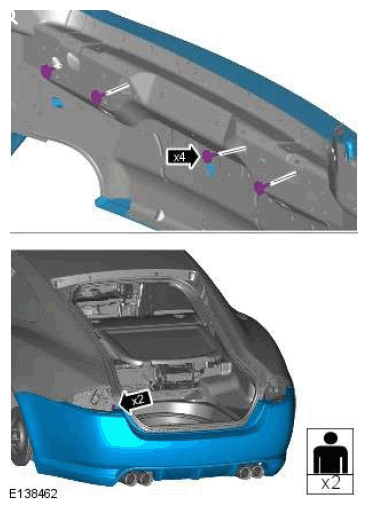

  14. G11524802

    Torque Specification: 6 Nm

    15. NOTE:
    • Do not disassemble further if the component is removed for access only.
    • RH illustration shown, LH is similar.
    • The step must be carried out on both sides.

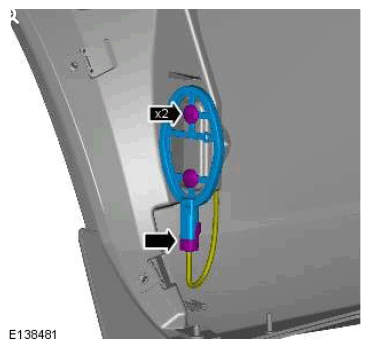

  15. G11524803

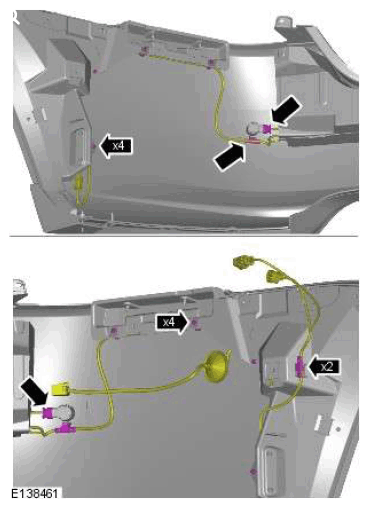

  16. G11524804

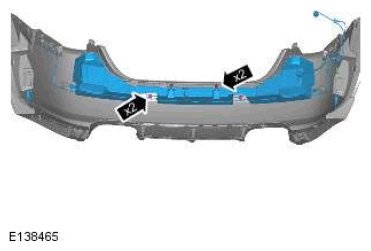

  17. G11524805

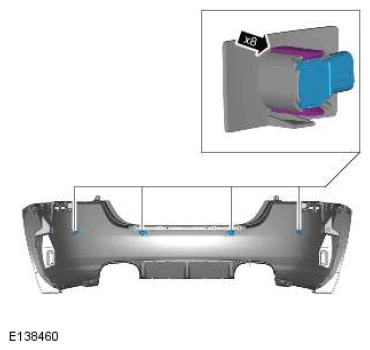

  18. G11524806
