Special Tool(S): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Make sure that the road wheels are in the straight ahead position.
NOTE: Removal steps in this procedure may contain installation details.
    WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.

  1. Refer to: Battery Disconnect and Connect

  2. Refer to: Driver Air Bag Module
    3. CAUTION: Make sure the wiring harness and electrical connectors are not damaged during this operation.
  3. G11512379

    Torque Specification: 40 Nm

    4. CAUTION: Make sure that the clockspring rotor does not rotate.
  4. G11512380

    Special Tool(s):  211-326

    5. NOTE: Do not disassemble further if the component is removed for access only.

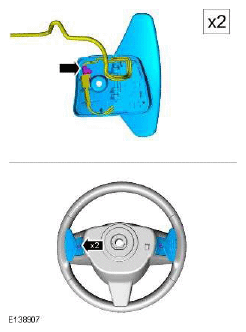

  5. G11512381

    Torque Specification: 3 Nm

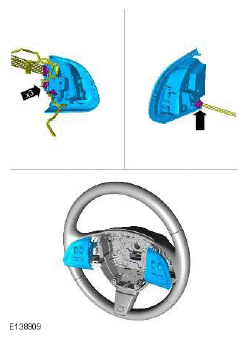

  6. G11512382

    Torque Specification: 3 Nm

  7. G11512383

    Torque Specification: 6 Nm

  8. G11512384
  9. G11512385
