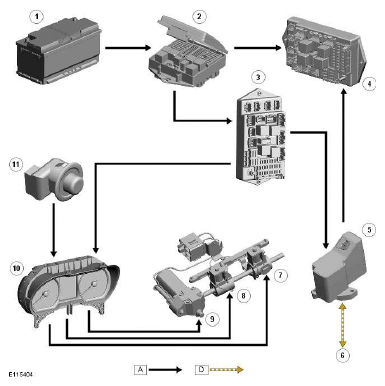

Control Diagram
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; D
= High speed CAN (controller area network) bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) (175 A megafuse x 2) |
| 3 | CJB (central junction box) |
| 4 | AJB (auxiliary junction box) |
| 5 | Electric steering column lock (all except NAS vehicles) |
| 6 | High speed CAN connection to other systems |
| 7 | Rake adjustment solenoid and potentiometer |
| 8 | Reach adjustment solenoid and potentiometer |
| 9 | Steering column adjustment motor |
| 10 | Instrument cluster |
| 11 | Steering column adjust switch |
