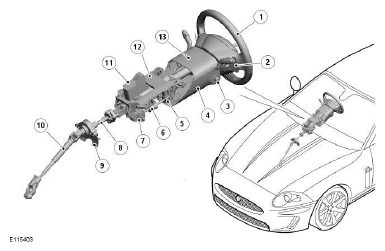

Component Location
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Steering wheel |
| 2 | Gear change paddle switch (if fitted) |
| 3 | Steering column adjust switch |
| 4 | Lower shroud |
| 5 | Rake adjustment housing |
| 6 | Reach adjustment housing |
| 7 | Column adjustment motor |
| 8 | Lower column - upper collapse shaft |
| 9 | Bulkhead bearing assembly |
| 10 | Lower column - lower collapse shaft |
| 11 | Electric steering column lock (all except NAS (North American specification) |
| 12 | Column mounting plate |
| 13 | Upper shroud |
