Special Tool(S): Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Make sure that special tool 211-326 is installed to the clockspring.

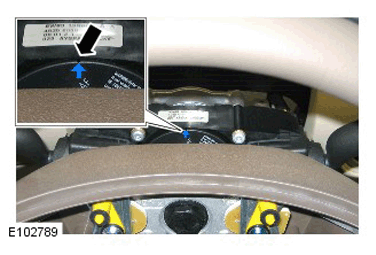

Make sure that the arrow on the cassette is centered and pointing vertically (make sure that the steering wheel has remained in the 12 o'clock position and that it has not been turned by +/- 360 degrees ) prior to the steering wheel installation. On removal of the special tool, keep the clockspring cables taught to prevent the cassette moving from the set position. Failure to follow this instruction may result in damage to the component.

NOTE: Make sure that the road wheels are in the straight ahead position, failure to follow this instruction may result in damage to the vehicle.

To install, reverse the removal procedure.
