Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Make sure that only the manufacturers' recommended four wheel alignment equipment is used.
  • Do not turn the steering wheel with the steering column lower shaft disconnected as damage to the clockspring and steering wheel switches may occur.
NOTE: Make sure the steering is in the straight ahead position.
  1. Refer to: Battery Disconnect and Connect .
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).
  4. NOTE: RHD illustration shown, LHD is similar.
    G11512228
  5. G11512229

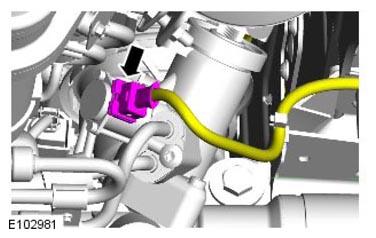

  6. G11299585
  7. CAUTION: Discard the bolt.
    G11512231

    Torque Specification  : 35 Nm

  8. G11512232
  9. CAUTION:
    • Make sure that the area around the component is clean and free of foreign material.
    • Be prepared to collect escaping fluids.
    G11512150

    Torque Specification  : 15 Nm

  10. G11512234

    Torque Specification  : 117 Nm
