Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

  1. Refer to: Battery Disconnect and Connect .

  2. Raise and support the vehicle.
  3. Refer to: Power Steering System Filling .
  4. G11512214

    Torque Specification  : 25 Nm

  5. NOTE: Do not loosen the bolts more than 2 turns.
    G11512214

    Torque Specification  : 25 Nm

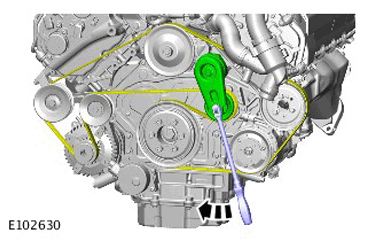

  6. G11284664
  7. G11512217
  8. G11512218
  9. G11512219

    Torque Specification  : 10 Nm

  10. G11512220

    Torque Specification  : 25 Nm

  11. G11512221

    Torque Specification  : 25 Nm

  12. G11512222

    Torque Specification  : 25 Nm

  13. G11512223

    Torque Specification  : 10 Nm

  14. G11512224
  15. CAUTION: Note the fitted position of the component prior to removal.
    G11512225

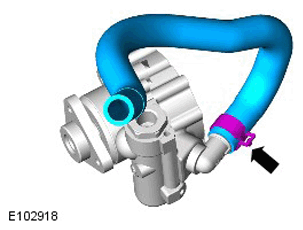

  16. G11284669
