Power Steering Pressure Test
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

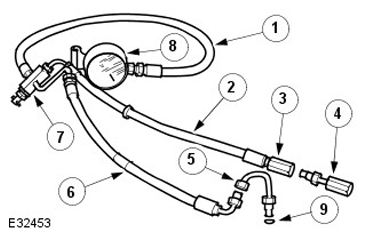

TEST EQUIPMENT
| ITEM | PART NUMBER | DESCRIPTION |
|---|---|---|
| 1 | 211-011 | Pressure gauge hose |
| 2 | 211-011-08 | Pump return hose |
| 3 | 211-011-07 | Pump return hose connector |
| 4 | 211-011-03/2 | Test equipment to high pressure hose adaptor |
| 5 | 211-011-03/1 | Pump high pressure outlet to hose adaptor |
| 6 | 211-011-02 | Pump adaptor to control valve hose |
| 7 | 211-011-01 | Control valve |
| 8 | 211-011 | Pressure gauge |
| 9 | - | 'O' ring seal |
The measurement of the maximum system pressure, (which is governed by the pressure relief valve) is achieved by inserting the service tool (pressure gauge and adaptors) into the fluid circuit of the power steering system. Run the engine at idle speed, turn the steering from lock to lock and read the maximum pressure recorded on the gauge
