Thermostatic Expansion Valve (G545135): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable.
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Remove the heater and evaporator core housing.

    For additional information, refer to: Heater Core and Evaporator Core Housing (Removal and Installation).

  4. CAUTION: Always plug any open connections to prevent contamination.

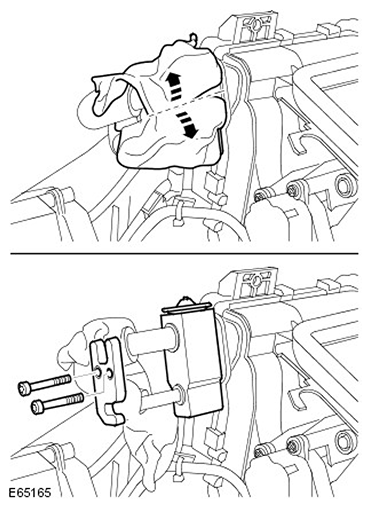

    G11545269

    Remove the TXV assembly.

    • Carefully cut and release the insulation for access.
    • Remove the 2 Allen bolts.
    • Remove and discard the 4 O-ring seals.
