Receiver Drier (G1347065): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (General Procedures).
  3. Refer to: Radiator Splash Shield (Removal and Installation).
  4. G11541352
  5. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

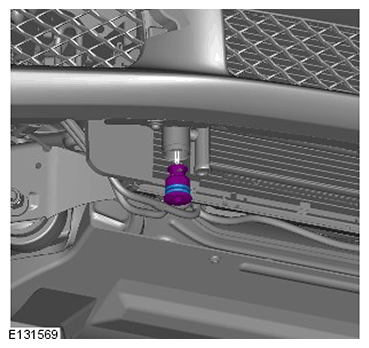

    G11545271

    Torque specification: 12 Nm

  6. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

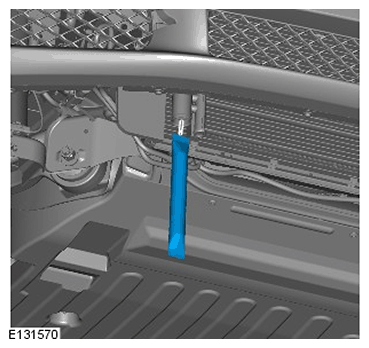

    G11545272
