Pressure Cutoff Switch (G560837): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable.
  2. Recover the A/C refrigerant.
  3. Remove the engine cover.

    For additional information, refer to: Engine Cover (Removal and Installation).

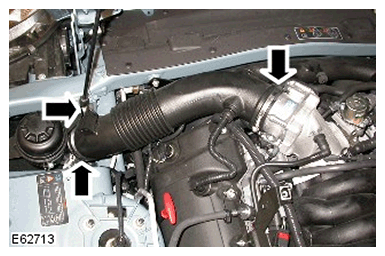

  4. G11545267

    Remove the air intake duct.

    • Remove the bolt.
    • Release the 2 clips.
  5. CAUTION: Before disconnecting or removing components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

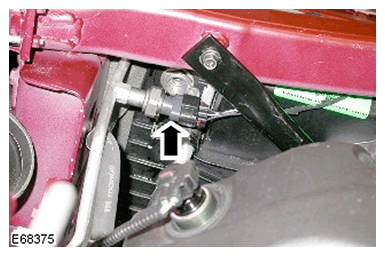

    G11545268

    Remove the pressure cutoff switch.

    • Disconnect the electrical connector.
    • Remove and discard the O-ring seal.
