Air Conditioning Compressor - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (G1084809): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: BATTERY DISCONNECT AND CONNECT (G1075549) (General Procedures).
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
  3. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (General Procedures).
  4. See Figure

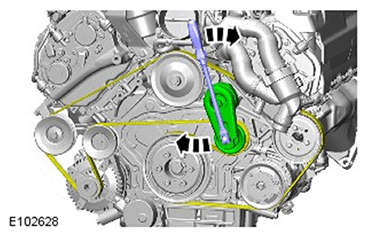

    G11545249
  5. Torque specification: 8 Nm
    G11285762
    6. CAUTION:
    • Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.
    • Make sure that all openings are sealed. Use new blanking caps.
  6. Torque specification: 9 Nm

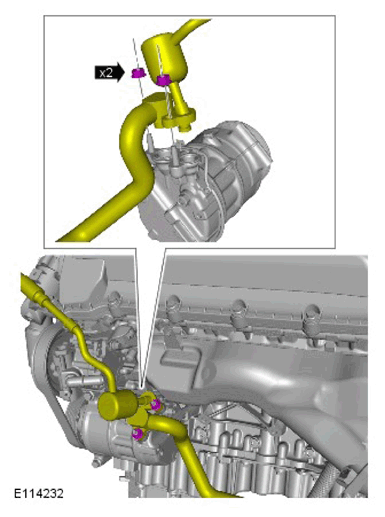

    G11304184
  7. See Figure
    G11285144
    8. CAUTION:
    • Make sure that all openings are sealed. Use new blanking caps.
    • Take care not to damage the O-ring seals during installation.
    G11424558
  8. Torque specification: 25 Nm
