Heater Coolant Pump
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

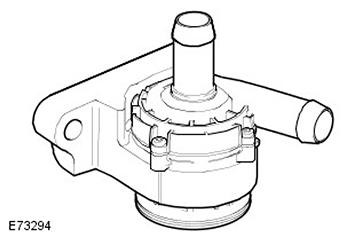

A heater coolant pump is mounted on the RH rear face of the radiator housing. The pump is electrically driven and provides the necessary flow rate of engine coolant to the heater core. Operation of the pump is controlled by the Central Junction Box (CJB) on receipt of medium speed Controller Area Network (CAN) bus signals from the ATC module.
The pump will run when the engine is running and operates at a single speed. The CJB broadcasts pump status over the medium speed CAN bus for use by other vehicle systems.
NOTE:
The pump can be forced to run when the engine is not running if required.
For additional information, refer to: ENGINE COOLING (Description and Operation).
For additional information, refer to: ENGINE COOLING (Description and Operation).
