Component Location

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

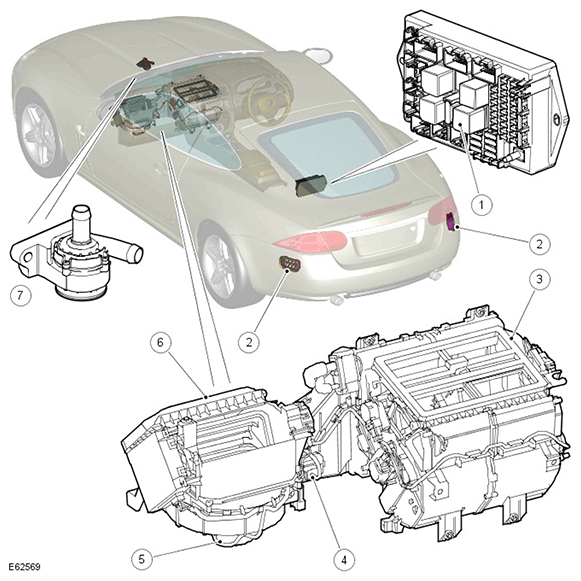

NOTE: RHD (right-hand drive) shown, LHD (left-hand drive) similar
G11545134
ITEM DESCRIPTION
1 Blower relay
2 Ventilation outlets (2 off)
3 Heater assembly
4 Blower motor control module
5 Blower
6 Air inlet
7 Heater coolant pump
