Air Inlet Duct
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

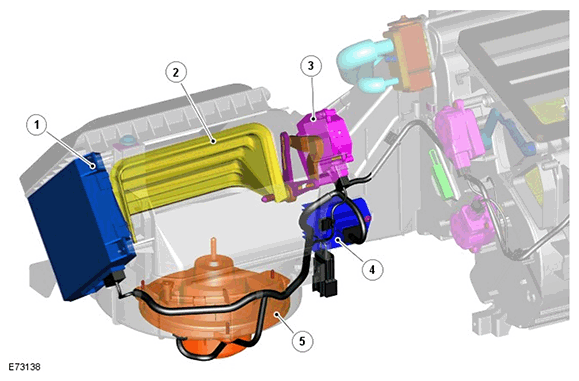

| ITEM | DESCRIPTION |
|---|---|
| 1 | ATC module |
| 2 | Fresh/recirculated air door |
| 3 | Fresh/recirculated air door motor |
| 4 | Blower motor control module |
| 5 | Blower motor and fan assembly |
The air inlet duct is installed behind the instrument panel on the passenger side. Inlet air passes through the cabin filter and into the air inlet duct where it enters the blower. A servo motor mounted on the air inlet duct allows fresh or recirculated air to be selected. Operation of the fresh/recirculated door is controlled by the ATC module.
