Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Removal of the clips is a delicate procedure, damage will occur if any force is used.
    G11545142

    Remove the passenger side footwell trim panel.

    • Remove the 3 clips.

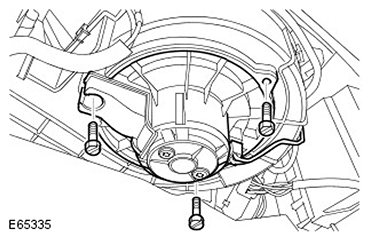

  2. G11545143

    Remove the blower motor.

    • Disconnect the electrical connector.
    • Remove the 3 screws.
