Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to: Cooling System Partial Draining and Vacuum Filling (General Procedures).
  3. Refer to: Radiator Splash Shield (Front End Body Panels).
  4. Refer to: Auxiliary Radiator (Engine Cooling - V8 5.0L Petrol / V8 S/C 5.0L Petrol).

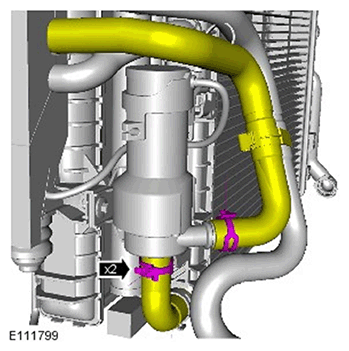

  5. G11545139

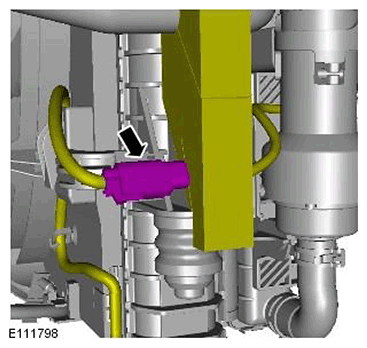

  6. G11541354

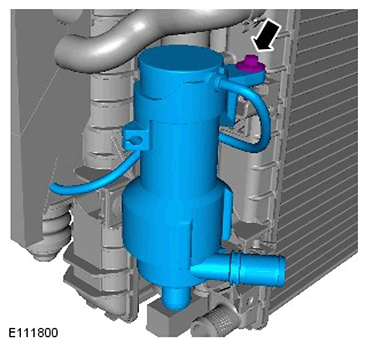

  7. G11545141

    Torque Specification: 7 Nm
