Wheel Knuckle (G1451609): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Make sure the ball joint seal is not damaged. A damaged seal will lead to the premature failure of the joint.
  • Make sure that the ball joint ball does not rotate.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Discard the retaining nuts.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Front Wheel Bearing and Wheel Hub - V8 5.0L Petrol/V8 S/C 5.0L Petrol  (Front Suspension, Removal And Installation).

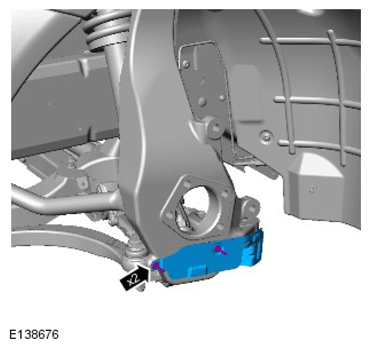

  3. G11296603

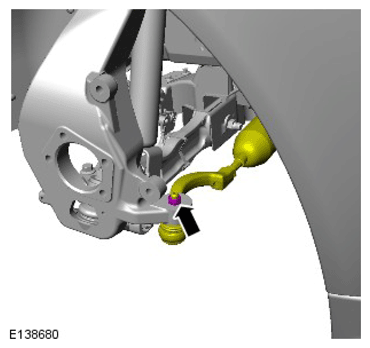

  4. G11296604

    Torque Specification: 133 Nm

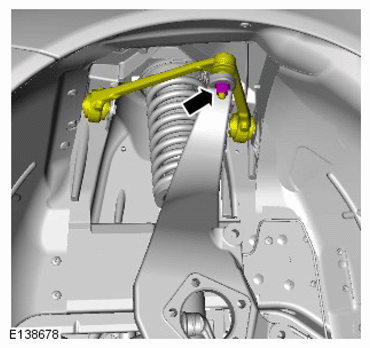

  5. G11296605

    Torque Specification: 90 Nm

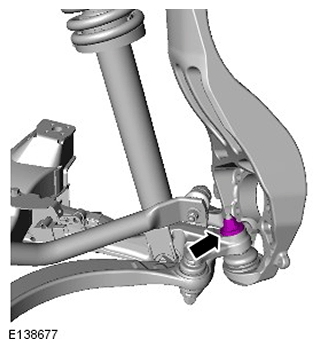

  6. G11504084

    Torque Specification: 92 Nm

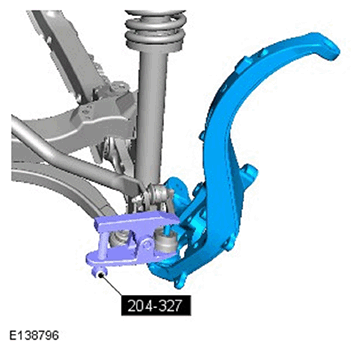

  7. G11504085

    Special Tool(s):  204-327
