Stabilizer Bar Link Bushing (G537329): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Remove the LH lower arm.
For additional information, refer to: REAR LOWER ARM (G537323) (REMOVAL AND INSTALLATION).

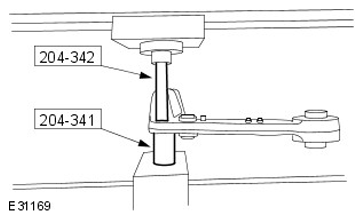

Using the special tools, remove and discard the stabilizer bar link bushing.
