Stabilizer Bar Link Bushing (G537329): Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

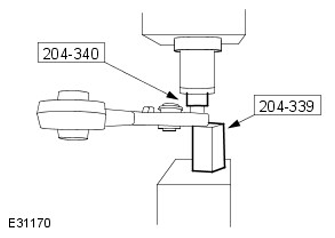

  1. G11283734

    Using the special tools, install the stabilizer bar link bushing.

  2. Install the lower suspension arm.

    For additional information, refer to: REAR LOWER ARM (G537323) (204-01, REMOVAL AND INSTALLATION).
