Shock Absorber Bushing (G537325): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Remove the front lower suspension arm.

    For additional information, refer to: REAR LOWER ARM (G537323)  (Removal And Installation).

  3. NOTE: Take note of the fitted position of the bush.

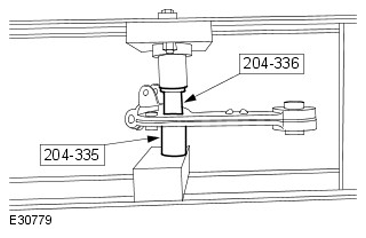

    G11283714

    Using the special tools, remove the shock absorber bushing.
