Shock Absorber Bushing (G537325): Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

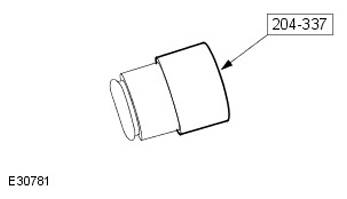

  1. G11283715

    Install the bushing into the special tool.

  2. NOTE: Align to the position noted on removal.

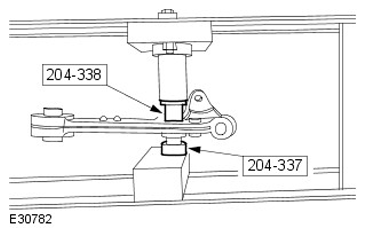

    G11283716

    Using the special tools, install the shock absorber bushing.

  3. Install the lower suspension arm.

    For additional information, refer to: REAR LOWER ARM (G537323)  (REMOVAL AND INSTALLATION).
