Rear Lower Arm Bushing (G537324): Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

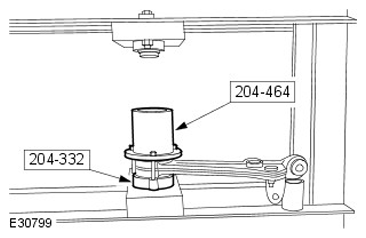

  1. G11283705

    Install the special tools to the rear lower arm.

    • Tighten the bolts.
  2. NOTE: Align to the position noted on removal.

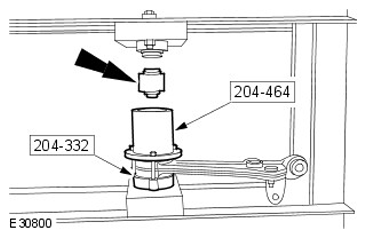

    G11283706

    Position the bushing in the special tool.

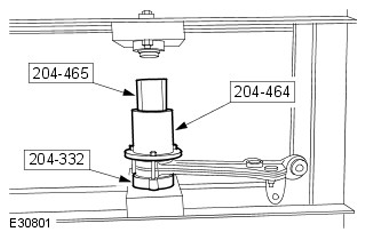

  3. G11283707

    Using the special tools, partially install the lower arm bushing.

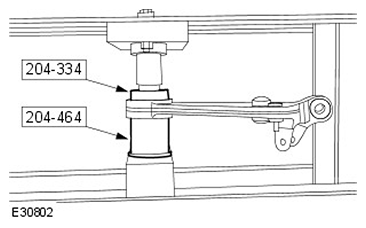

  4. G11504029

    Change the special tools, then complete installation of the bushing.

  5. Install the lower suspension arm.

    For additional information, refer to: REAR LOWER ARM (G537323)  (Removal And Installation).
