Left Upper Arm (G1084615): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Raise and support the vehicle.
  2. Refer to: Battery Disconnect and Connect (General Procedures).
  3. Refer to: Front Shock Absorber - 5.0L  (Removal And Installation).
  4. Refer to: ELECTRONIC ENGINE CONTROLS - V8 S/C 5.0L PETROL -- XK/X150 (Engine Control Module - Removal and Installation), or ELECTRONIC ENGINE CONTROLS - V8 5.0L PETROL -- XK/X150 (Engine Control Module - Removal and Installation).

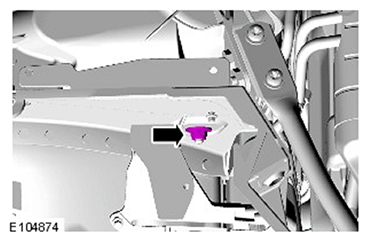

  5. G11504055

    Torque Specification: 70 Nm

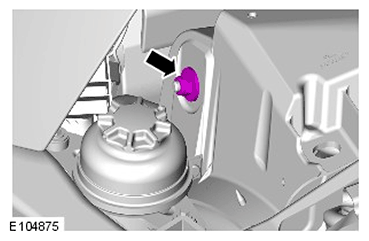

  6. G11504056

    Torque Specification: 70 Nm

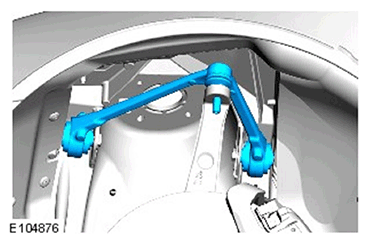

  7. G11504057
