Front Wheel Bearing And Wheel Hub - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (G1209363): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If a wheel bearing is damaged, both front wheel bearing and wheel hubs assemblies must be renewed as a pair.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Torque Specification: 112 Nm

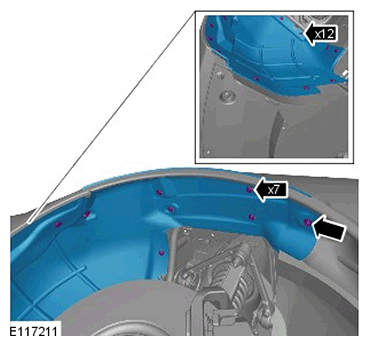

Torque Specification: 10 Nm
NOTE: LH illustration shown, RH is similar.
CAUTION: Discard the bolts.

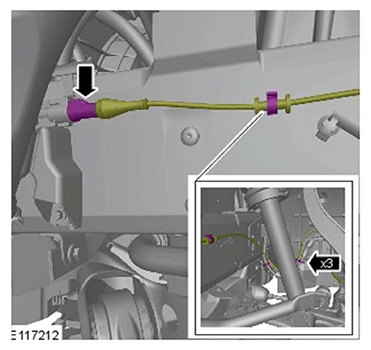

NOTE:
- LH illustration shown, RH is similar.
- Secure with cable ties.
Torque Specification: 115 Nm

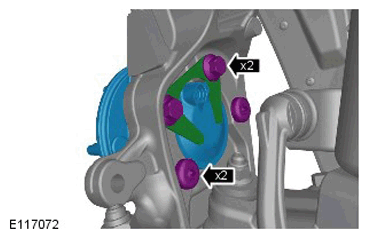

NOTE: LH illustration shown, RH is similar.
CAUTION:
- Discard the bolts.
- Make sure that the area around the component is clean and free of foreign material.
- Do not attempt to release the wheel hub by hitting it with a hammer directly, loosen the wheel hub retaining bolts partially before applying an even amount of force to the head of each bolts to release the wheel hub from the wheel knuckle. Failure to follow this instruction may cause damage to the component.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- LH illustration shown, RH is similar.
- Install the components to their original fitted positions.
Torque Specification: 90 Nm
