Front Wheel Bearing And Wheel Hub - V8 N/A 4.2L Petrol/V8 S/C 4.2L Petrol (G537332): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the body.

  2. Remove the LH front brake disc.

    For additional information, refer to: Brake Disc - Vehicles With: Standard Brakes (Removal and Installation).

  3. NOTE: Use an additional wrench to prevent the ball joint rotating.

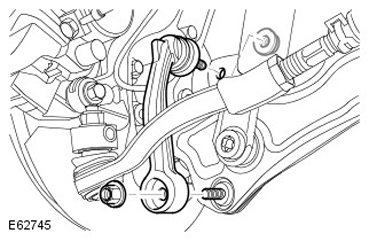

    G11283728

    Remove the LH stabilizer bar link.

    • Remove and discard the 2 nuts.
  4. Remove the wheel speed sensor.
    • Release the clip.
    • Tie aside.
  5. CAUTION: Do not attempt to release the wheel hub by hitting it with a hammer directly, loosen the wheel hub retaining bolts partially before applying an even amount of force to the head of each bolts to release the wheel hub from the wheel knuckle. Failure to follow this instruction may cause damage to the component.
    NOTE: Note the fitted position.

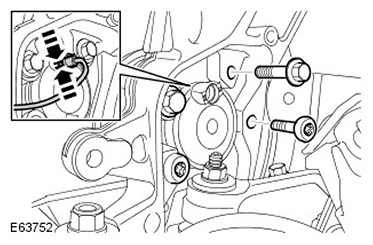

    G11504067

    LH front: Carefully remove the hub assembly.

    • Remove and discard the 2 Torx bolts.
    • Remove and discard the 2 bolts.
