Front Stabilizer Bar (G1081497): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Wheel and Tire (Removal and Installation).
  3. CAUTION: Discard the nuts.
    NOTE: LH illustration shown, RH is similar.
    G11296584
    • On both sides.

    • Torque Specification: 43 Nm

    • Torque Specification: 70 Nm

  4. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

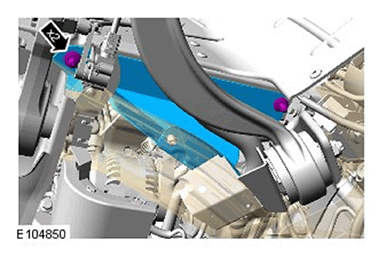

  5. G11504040

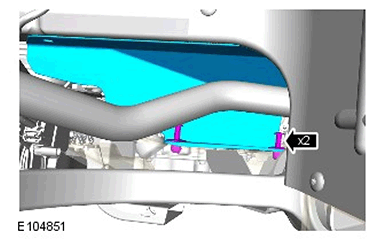

  6. G11504041
  7. G11283723

    During installation tighten the bolts in the following sequence.

    Torque Specifications:

    Bolt 1 55 Nm

    Bolt 2 55 Nm

    Bolt 1 55 Nm

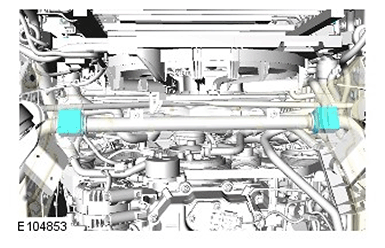

  8. G11504043

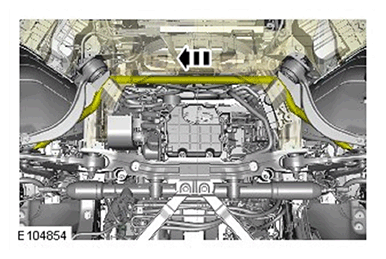

  9. G11504044
