Front Shock Absorber (G1076247): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to: Wheel and Tire (Removal and Installation).

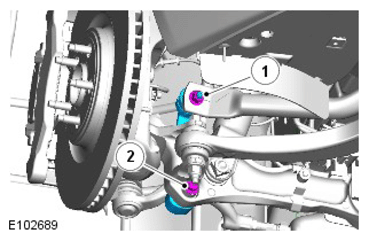

  3. NOTE: Use an additional wrench to prevent the ball joint rotating.
    G11296584

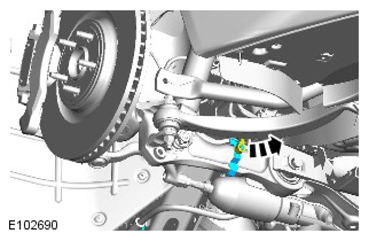

  4. G11296585

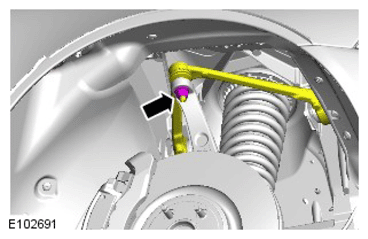

  5. CAUTION: Discard the nut.
    G11296586

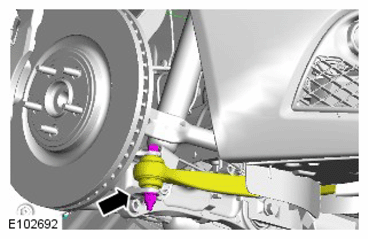

  6. CAUTION:
    • Discard the bolt.
    • Discard the nut.
    G11296587

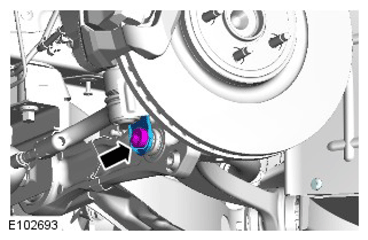

  7. G11296588

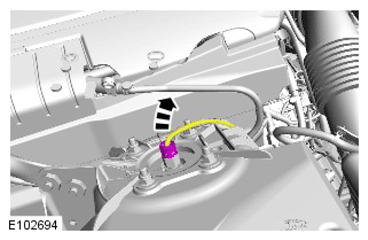

  8. G11296589

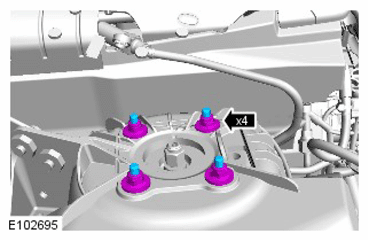

  9. G11296590

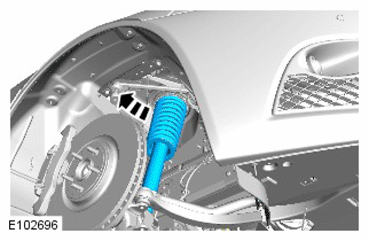

  10. G11296591

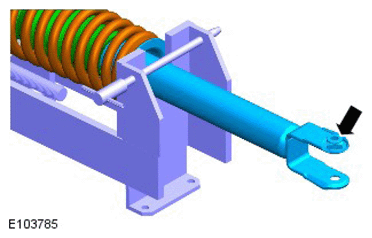

  11. CAUTION: Note the fitted position of the component prior to removal.
    G11296592
    • Make sure that the shock absorber and spring assembly is installed to the special tool with the lower mount retaining nut facing upwards.
  12. G11296593

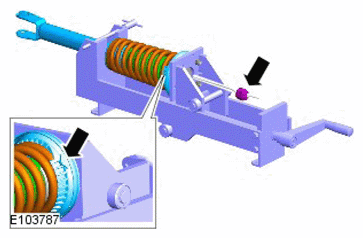

  13. CAUTION:
    • Take extra care when handling the component.
    • Note the fitted position of the component prior to removal.
    G11296594
    • Make sure that the top mount assembly and isolator remain in position while removing shock absorber.
