Front Lower Arm Bushing (G1604744): Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Make sure that the bush is correctly seated in the special tool.
    G11305561

    Special Tool(s):  JLR-204-815

  2. G11305562

    Using the special tools, remove the bush.

    Special Tool(s):  JLR-204-813, JLR-204-815

    General Equipment:  Hydraulic press

  3. G11283685

    Make sure that the bush has been installed to the noted removal position.

  4. G11305558

    Make sure that measurement taken prior to removal is still correct.

  5. G11504107

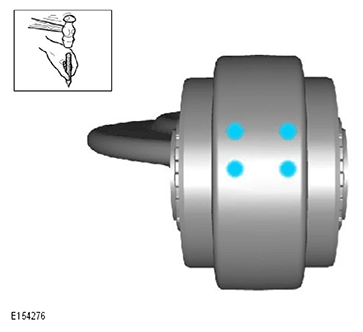

    Mark the front lower arm with a center punch, once the procedure has been completed.

    General Equipment:  Center punch

  6. Refer to: FRONT LOWER ARM (G537322)  (Removal And Installation).
