Front Lower Arm (G537322): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Nuts and bolts must be tightened with the weight of the vehicle on the suspension.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Remove the LH front wheel and tire.

    For additional information, refer to: Wheel and Tire (Removal and Installation).

  3. NOTE: Note the fitted position.

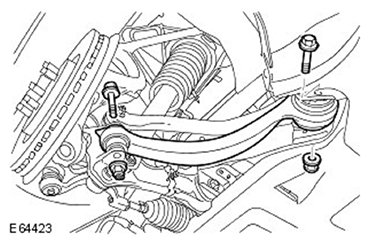

    G11504012

    Release the forward lower control arm.

    • Remove the 2 bolts and discard the nuts.
